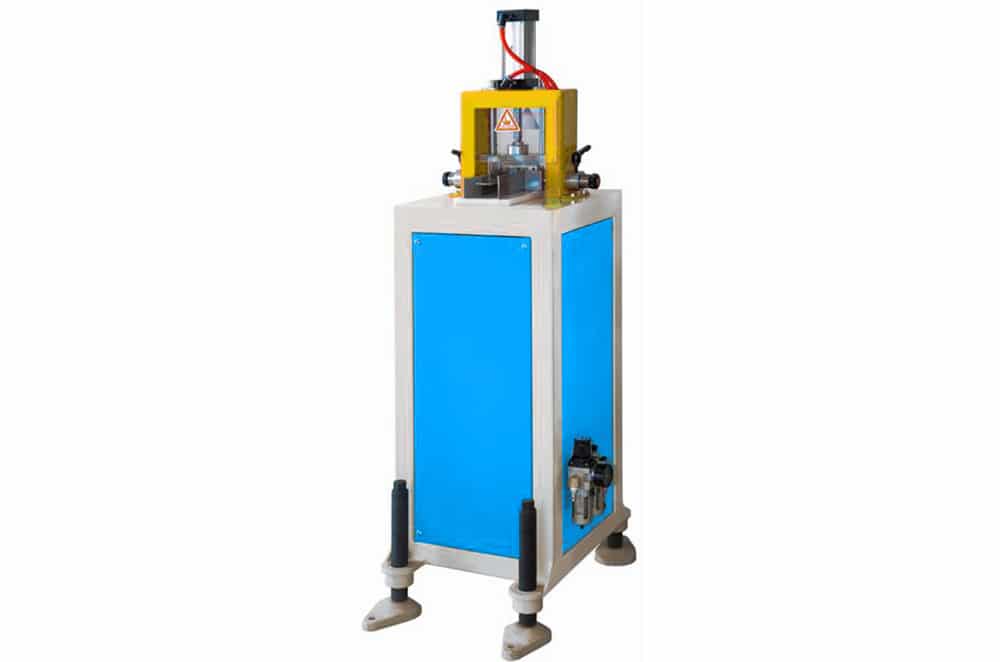

Air Cutter Machine

We provide air cutter for customer needs.

FEATURES

The air cutter, cutting force is 150 kgs, and the cutting diameter is (W) 20mm or 50 x (T) 2mm (MAX).



Cutting surface areas range from 100mm x 100mm of the ESC series to the 1200mm x 80mm of the EKC1200 series, with varying designs to fit different cutting requirements.

Specifications for the ESC Series Are:

  • Max. Cutting Speed: 20 times / min
  • Cutting Tolerance: +/- 1mm
  • Cutting Verticality: 0.3/100mm
  • Blade Speed: 3400 rpm

Specifications for the EFC Series Are:

  • Max. Cutting Speed: 35 times / min
  • Cutting Tolerance: +/- 0.2mm
  • Cutting Verticality: 0.3/100mm
  • Blade Speed: 3400 rpm

Specifications for the EKC Series Are:

  • Cutting Tolerance: +/- 0.2mm
  • Max. Work Area: (H)80mm x (W)1200mm
